CS 488/688: Introduction to Computer Graphics

Assignment 1: Rasterization

Summary

In this assignment, you will implement rasterization. Modern GPUs implement rasterization in hardware, and 3D graphics APIs such as OpenGL and DirectX abstract away the details behind it. You will implement a simplified rasterization process in software, meaning that you do 3D graphics without a GPU! Completing this assignment lets you understand the common core ideas used by virtually all graphics APIs for interactive rendering. There are multiple tasks, as described below.

You can take your extended cs488.h from A1 as a starting point. If your ray tracing is correctly implemented, it might help you debug your ray tracer since you can generate some reference images. However, you can still complete all the tasks in A2 even if you failed everything in A1.

Just like A1, do NOT just use hardware ray tracing on GPUs by calling ray tracing APIs (or any other external libraries) and call this assignment done. You will get zero points. This course is not about how to use such libraries and APIs. We would like you to go through the fundamentals of ray tracing so that you have a solid foundation to use whatever future ray tracing libraries you might use after taking this course!

Task 0: main.cpp

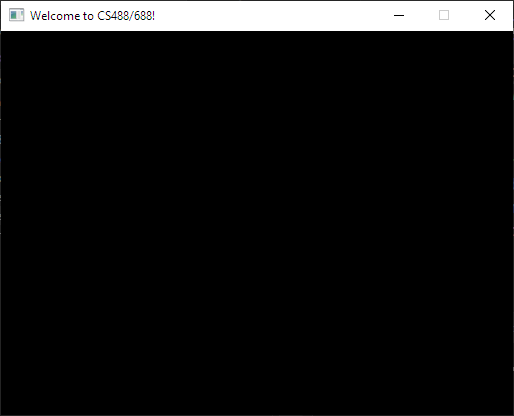

Comment out A1(argc, argv) and comment in A2(argc, argv) to enable a simple setup code in main.cpp. That being said, the only difference from A1(argc, argv) is the change of globalRenderType. This variable now tells the framework to run in a rasterization mode. You can toggle between different rendering modes by pressing the "R" key. The default code is trying to load .obj file in the command line arguments as in cs488.exe cube.obj, or it will create a single triangle otherwise. There is one point light source added as well (but it does not matter in this assignment for now). You do not need to prepare or load .obj file at this point. If the code runs, you just see a window that shows nothing. No, it is not a bug. You will code it to show something interesting.

Task 1: Perspective transformation matrix

Your first task is to set up a proper matrix for perspective transformation. Look up void Rasterize() in the Scene class and check out a matrix float4x4 plm there. You need to fill in plm as a matrix that transforms a vertex in the world space (the base code stores all the vertices in the world space) to the clip space (the space where you can perform clipping). Just above Rasterize(), you will see two functions perspectiveMatrix and lookatMatrix that you will need to use by taking into account the current camera parameters. You can find variables for the camera parameters at the beginning of cs488.h. After finishing this task, you will still see the same window.

Task 2: Rasterize points

After you have a proper matrix set up (or at least you believe it is), then you now look up void rasterizeTriangle in the TriangleMesh class. The function rasterizeTriangle takes the plm matrix from above and also takes a triangle in the world space. You can access each vertex in the triangle via tri.positions[0], for example (there are three vertices in a triangle, right?). Figure out how to compute the index i, j of each point and then fill in the pixel by FrameBuffer.pixel(i, j) = float3(1.0f). You basically rasterize the points (vertices) of each triangle. You will see something like this (look for three white pixels):

Congratulations! You can move around this 3D triangle by dragging via the left mouse button and pressing WASDQZ keys (like a first-person shooter). You may now want to try loading some example .obj files. Here is a result of cornellbox.obj.

You should check if i, j is in the image. You can do so by calling FrameBuffer.valid(i, j).

Task 3: Rasterize triangles

Now you take those points and fill in the inside of a triangle. The lecture should have covered how to do it, but basically, you will need to loop over pixels in FrameBuffer and fill in those pixels inside the triangle. At this stage, filling in those pixels with a proper colour assigned for each triangle would be interesting. You can access it via the float3 variable materials[tri.idMaterial].Kd. You will see an image like this for the single default triangle.

Starting from here, you might experience that your program is "less interactive". You will particularly experience this if you are building your program in a "debug" mode since some compiler optimizations are generally turned off in this mode. They are pretty important for graphics programs to run efficiently. Consider enabling some optimizations back in a debug mode or running in a "release" mode if you want to load a complex .obj file. This advice applies to the other assignments. Test or debug for simple examples and switch to a release build for something more complex.

Task 4: Depth buffering

If you load cornellbox.obj at this point, you will see something like this:

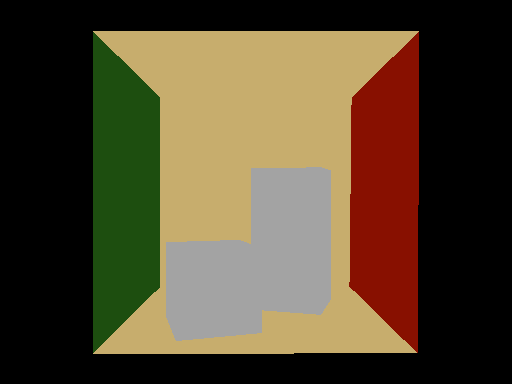

Is that correct? Actually not. This .obj file is supposed to be looking like this instead:

What's wrong? It is because you have not implemented depth buffering. You can access the depth buffer via FrameBuffer.depth(i, j) which is already initialized for you in each frame. Use this depth buffer to figure out how to perform correct z-buffering. You need to compute a proper depth by interpolating a transformed z value at each vertex. If it is working, you will see the above image.

Task 5: Perspective correct interpolation

For this task, you need to call static float3 shade to fill in the pixel value to fetch a texture. To do so, you need to fill in the member variables of the HitInfo class. For this assignment, you need to fill in T, which stores a texture coordinate. Your task is to interpolate to fill in T and then call the shade function. Note that material pointer can be filled in as material = &materials[tri.idMaterial]. You can access the texture coordinate at each vertex as tri.texcoords[0] which is float2. You need to interpolate those via perspective-correct interpolation. If you load textured.obj with (perspective) incorrect interpolation, you will see something like this:

The correct rendering with perspective correct interpolation will look like this:

Extras

All of the assignments come with optional extra tasks for those of you who would like more challenges and potentially gain extra points! Specification of an extra task is intentionally very-high level. Clearly explain what you did in README if you want an extra point. You may or may not receive an extra point depending on our evaluation.

Extra 1: Faster rasterization

The basic rasterization algorithm explained in the lecture is working, but not the fastest possible. Make your rasterization faster. Report the performance boost. We expect you to do something algorithmic, not just change compiler options or minor coding optimization. You can also do any optimization, including proper multi-threading, vectorization, but NOT use other libraries or APIs. Make your rasterizer as fast as possible!

Extra 2: Proper clipping

You are not required to implement proper clipping in this assignment. However, implementing clipping would be helpful if you expect a triangle to intersect with the near plane. Implement proper clipping and demonstrate the difference.

What to submit

The submission process for this assignment is basically the same as the one for Assignment 0. Prepare a ZIP file of your code, omitting unnecessary files (executables, build files, etc.). Upload the ZIP file to LEARN.

As with Assignment 0, you must submit the README. In this assignment, you need to provide multiple screenshots to demonstrate what you achieved in each task. Name them as screenshotTask2.png etc., to clarify which task you are referring to. If you omit either of the files, you will receive a deduction. See Assignment 0 for instructions about how to prepare these files.

If you do extend the base code, be sure to document your extensions in your README file. Keep in mind that you must still satisfy the core objectives listed here. If your changes are so radical that your modified program is incompatible with the original specification, you must include a "compatibility mode" that makes the interface behave like the requirements here, or consider creating an entirely separate project.

Your renderer should be able to render the same images as on this page. You may also choose different scenes to demonstrate your results. Be creative!

Other thoughts

After completing this assignment, your code is ready for interactive and non-interactive applications. Your rendering system is a hybrid of rasterization and ray tracing. Think about how you might want to extend or any additional techniques you might want to implement on top of it. Those are great candidates for your final project. It will not hurt for you to start implementing those features. We can still consider those in the final project if you do not claim points in this assignment.

You might want to check out how the .obj loader converts the values from .mtl (material definition file for .obj) to the material definitions in the base code. You can extend this part to have more variation of materials, and that might help you to later load a more complex .obj file in the final project.

Objectives

Every assignment includes a list of objectives. Your mark in the assignment will be based primarily on the achievement of these objectives, with possible deductions outside the list if necessary.

A correct matrix for perspective transformation is computed.
Vertices of triangles are properly rasterized.
Triangles are properly rasterized.
Depth buffering is working correctly.
Perspective correct interpolation is done.
